Barrier / protection guards/ fencing
Barrier and Protection guards are offered in different disigns & sizes by ESA,it comes with different mountung systems and protection level based on applications ,can b used in areas ike loading bay of factoriies ,building entrance, trolley parking ,MEP protection etc.
Barrier and Guards are offered in different materials lie stainless steel ,mild steel and Aluminum
Police barries Size: 1100MM x 2500MM

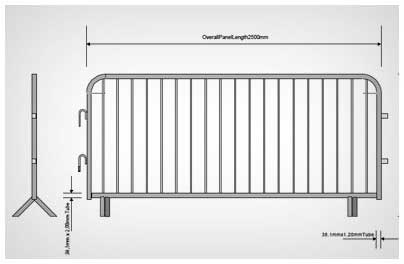

Crowd Control Barrier
Our crowd control barriers have flat feet barrier and claw feet barriers.Crowd control barriers are quick and easy to install in any location. Their flexibility provides the ability to control of changing crowd sizes and conditions.
- Surface treatment :
- Hot dipped galvanized;
- Electro galvanized;
- Electro galvanized with pvc coated or powder coated;
- Finished colors in Dark Green RAL 6005 or Black RAL 9005.Other RAL colors available on request.
Crowd Control Barrier Specifications:
- Mesh Spacing: 60mm, 100mm,190mm & 200mm;
- Infill Picket: 14mm, 16mm, 20mm & 25mm O.D;
- Frame post: 25mm,32mm,38mm,40mm,42mm and 48mm;
- Panel size: 1100mm(H) x 2100mm(W),1100mm(H) x 2300mm(W),1100mm(H) x 2500mm(W),etc;
- Base: flat feet and claw feet.
Applications:
- Crowd control barrier is used for sporting events, Concerts, Public Gatherings, Construction Sites, Any site and public restriction area;
- Easy install and remove;
- residential areas, housing,farms, gardens and industrial.
Police Crowd Control Barriers
- 2100(L) x 1050(H) x 1000(D) mm
- 33.7mm Ø tube – robust design
- Comes in a set of 10 barriers
- Includes pallet frame – easy transport or storage
- Hot-dip galvanised – will not rust
- Connection hooks – join together easily
- Hinged foot platform – excellent grip and stability
Black Bull Heavy Duty Railing System – OUTDOOR
The Black Bull Heavy Duty Railing System provides high quality protection to outdoor walkways and pedestrian areas – perfect for warehouse areas and more
- Posts – 1000(H) x 100(W) x 100(D) mm
- Rails – 1000/1500/2000(W) x 120(H) x 80(D) mm
- Excellent build quality – highly durable
- Protects nearby pedestrians and assets
- Modular design – FAST installation
- Ideal for custom designs and applications
- Can be extended if required
- Damaged sections can be replaced easily
- Fixings required but not included
2.3m Crowd Control Barrier
- 2300(L) x 1100(H) mm
- Hot-dip galvanised steel frame – will not rust
- Fastening hook – connect multiple units easily
- Easy to transport – stackable
- Bulk discounts available – order online
PRODUCT INFORMATION
The Crowd Barrier Eco can be deployed to site quickly and easily and can help to cordon off areas where needed most. Each barrier is made from hot-dip galvanised steel and will last a lifetime outdoors where it is resistant to weathering and will not rust.
Each barrier comes with a connecting hook to connect multiple units together quickly and easily – use the barriers to close off large areas in a short space of time. The crowd barriers are perfect for the likes of construction works, events, parades, concerts and more.
The barriers can be deployed to site easily and can be easily stacked and stowed away when not in use. They are very easy to transport in large vans or trucks where they can be brought from one site to the next with great ease.
Temporary Fencing
The Temporary Fencing – Maximus is available for speedy delivery to site – bulk discounts available. Don’t forget to order the black rubber feet to got with the fence panels.
- 2000(H) x 3500(W) mm
- Tube diameter – 38.1mm
- Hot-dip galvanised steel – will not rust or corrode
- Order blocks and couplers separately
- Reinforced corners – sturdy design
- Round top – easy transport
- Perfect for building sites and works
Black Bull Heavy Duty Steel Bollard
The Black Bull Heavy Duty Steel Bollard is perfect for marking out areas in warehouses or car parks and provides resistance to medium to heavy impacts
- 1200/1600(H) x 90mm Ø
- 3.6mm wall thickness
- Surface mount – base plate – 200 x 200 x 10mm
- Sub-surface – 400mm installed below surface
- Extremely tough – heavy duty protection
- Hot-dip galvanised steel – will not rust or corrode
- Ideal for use with forklifts and work vehicles
- 2 install options – surface or sub-surface fix
- Fixings not included – be sure to purchase separately
Black Bull Steel Hoop Guards – Light Duty
The Black Bull Steel Hoop Guards – Light Duty are perfect for areas that require less heavy protection for assets in indoor areas.
- 1000(W) x 1000(H)
- Tube Diameter: 40mm Ø x 1.5mm wall thickness
- High quality German made – long lasting
- Powder coated yellow – highly visible
- Indoor use only
- Easy install – add fixings with your order (not included)
- 1500mm and 2000mm width available on request
Product Specifications:
- Height: 1000mm
- Width: 1000 / 1500 / 2000mm
- Weight: 9 / 11 / 13 kg
- Diameter: 40mm Ø x 1.5mm wall thickness
- Base plates: 150 x 150 x 6mm
- 1000(h) x 1000(w) mm (862874)
Black Bull Warehouse Collision Protection Bars
COLLISION PROTECTION BARS – FOR A SAFER WAREHOUSE
BlackBull Warehouse Collision Protection Bars stop trucks, roll containers and transport vehicles from colliding with and damaging shelves, cabinets and other workplace equipment
- Length – 400/800/1200mm
- 86mm Ø x 3mm wall thickness
- Base plate – 130 x 70 x 10mm
- Low profile design – easy access to protected areas
- Highly durable steel – long-lasting protection
- Protect against forklifts, pallet trucks etc.
- Tapered ends – sleek and professional design
- Fixings not included – be sure to order separately
Finish:
- Powder coated yellow with black bands.
- Also available is a corner protection guard to the same high standards as the Collision Bars above.
Dimensions:
- Height – 86 mm
- Length – 400/800/1200 mm
- Diameter – 76 mm
- Gauge – 3 mm
- Weight – 5 Kg
- Base Plate – 130 mm x 70 mm x 10 mm
Black Bull Pallet Rack Protection
BLACK BULL PALLET RACK PROTECTION – BEST DURABILITY
Robust and highly durable Black Bull Pallet Rack Protection Guards for use in warehouses, factory floors etc.
- 400/800/1200(H) x 160(W) x 160(D)mm
- 5/6 mm wall thickness
- Protection from impacts by vehicles or machinery
- Reduces risk of costly damage to pallet racking
- Highly visible yellow colour with black bands
- Available in a right angle or u-shaped formation
- Can be bolted direcetly into concrete
- Right-angle – requires 4 fixings
- U-shaped – requires 6 fixings
- Fixings not included – be sure to order separately
Black Bull Steel Barrier Protection Guard
Black Bull Steel Barrier Protection Guards are suitable for use in many environments, with options for both indoor and outdoor use
- Height: 300/600/1200mm
- Width: 750/100/2000mm
- Tube diameter: 76mm Ø x 3mm wall thickness
- Easy installation – instant impact protection
- Powder coated option for indoor use
- Hot-Dip Galvanised option for outdoor use
- Various sizes available
- Fixings not included – be sure to order separately
Black Bull Protection Guards
The Black Bull Protection Guards XL provide excellent protection to nearby assets, machinery and infrastructure in the likes of warehouses, freight depots, storage facilities and many more
- Height: 600/1200mm
- Width: 650/1000/1500/2000mm
- Base plates: 200 x 140 x 10mm
- Tube Diameter: 108mm Ø x 3.6mm wall thickness
- High Quality German made – long lasting
- Provides excellent protection against impacts
- Ideal for protecting pillars, columns, pallet racking etc.
- Powder coated for indoor use
- Hot-dip galvanised – will never rust outdoors
- Highly noticeable yellow with black bands
- Fixings not included – be sure to order separately
Black Bull Medium Duty Railing System – INDOOR & OUT DOOR
The BLACK BULL Medium Duty Railing System – INDOOR is a highly visible and separates and protects machinery and pedestrian walkways from vehicular traffic etc. internally. Highly suitable for installations where Heavy Duty protection is not required.
- Posts – 1000(h) x 70(w) x 70(d) mm
- Rails – 1000-2000(l) x 60(w) x 40(d)
- 3mm thick steel
- Excellent build quality and strength
- Modular design for quick & easy installation
- Counter sunk bolts secure rails to posts
- Can be easily extended at any stage
- Damaged sections easily replaced
- Optional rubber shock absorbing pads
- 4 fixings required per post – not included
Applications:
Manufacturing units, warehouses, distribution depots, vehicle yards, car parks etc.
Specifications:
- Posts
- Size: 70 x 70mm
- Height: 1,000mm
- Base Plate: 160 x 140 x 10mm (Drilled 4 fixing holes
Lateral Rails - Size: 60 x 40 x 3 mm
- Lengths: 1,000, 1,200, 1,500 or 2,000mmFinish:
- Powder coated Yellow
Black Bull Pallet Rack End Frame Protectors – Type A
The Black Bull Pallet Rack End Frame Protectors guard pallets and shelves from damage in the work place, especially from forklifts and shunting equipment.
- All sets 465(h) x 160(d) mm.
- Posts 465 x 80 x 80mm
- Rails 100(d) x 40(w) x 3mm gauge
- Anchor plates: 160(d) 140(w) x 10m gauge
- High quality German made – long lasting
- Highly visible
- Strong effective protection
- Adjustable widths
- Easy installation – minimum loss of space
Steel Wheel Stop
The Van Wheel Stop is perfect for using warehouses, courier depots and car parks for preventing LGVs and vans from moving beyond a point
- 750(L) x 125(H) x Ø 89mm
- Ideal for distribution centres for LGVs, vans and cars
- Galvanised and powder-coated
- Tough German construction
- 4 fixing points – 89mm diameter
- NOT SUITABLE FOR HGVs
PRODUCT INFORMATION
The Van Wheel Stop is the perfect product for preventing vans or LGVs from moving past a certain point. The Van wheel stop can be quickly and easily installed into warehouses, freight depots and courier centres where there is frequent van traffic.When installed the van wheel stop can be used to stop vans or LGVs from moving beyond a point and helps to prevent impact with nearby infrastructure or pedestrians.Each Van Wheel Stop is laser cut to ensure a solid and long lasting wheel stop while in use. Each wheel stop comes with 4 pre-drilled holes that allows it to be quickly and easily installed.The van wheel stops themselves are made from hot-dip galvanised steel and powder coated yellow to ensure maximum strength visibility while in use. Because the wheel stops are hot dip galvanised they will never rust, even if chipped or scratched.
Product Specifications:
- Height: 125mm
- Width: 750mm
- Tube: 89mm
- 4 fixings points – 89mm diameter
Black Bull Barrier Guards For Ledges
These easy to install Black Bull Barrier Guards For Ledges are manufactured from high grade steel for mounting on vertical surfaces.
- High quality German-made – long lasting
- 48mm tube diameter on all sizes
- Available in a removable or fixed version
- Ideal for warehouse ledges and walkways
- Curved steel tubes 48 mm dia. with knee bar
- Yellow coated black warning stripes for indoor use
- Choose Hot dip galvanized version for outdoor use
- Don’t forget to order two optional wall mount sockets for each removable barrier
Product Specifications
- Height: 1300mm total – 1000mm above ground
- Width: 1000 / 1500 / 2000mm
- Weight: 10 / 12.5 / 15kg
- Tube Diameter: 48mm
- Tube thickness: 2mm
- Indoor: Powder Coated
- Outdoor: Powder Coated and Hot-Dip Galvanised
Lamp Post Steel Protector
The Black Bull Lamp Post Protectors provide strong protection for vulnerable columns, exposed pipework etc. against damage by motorised transport.
- 600mm high
- 520/620mm wide
- High quality German made – long lasting
- Galvanised- 48mm tube diameter
- Powder Coated – 60mm tube diameter
- Two-piece design – easy installation
- Strong steel construction
- Isolates column from impact shock
- Hot-Dip Galvanised plain steel versions
- Powder coated yellow versions
- Easy installation – bolt down quickly
- Fixings required but not included
Product Specifications:
Dimensions:
765254
Outside: 600 (H) x 520 (W) x 520 (D)mm
Inside: 400 x 400mm
765263
Outside: 600 (H) x 620 (W) x 620 (D)mm
Inside: 500 x 500mm
765253
Outside: 600 (H) x 520 (W) x 520 (D)mm
Inside: 400 x 400mm
765255
Outside: 600 (H) x 620 (W) x 620 (D)mm
Inside: 500 x 500mm
765262
Outside: 600 (H) x 720 (W) x 720 (D)mm
Inside: 600 x 600mm
- Tube: 60/48mm Ø
- Wall thickness: 2mm
- Fixing plates: 160 x 70 x 10mm(Pre-drilled 4 holes)
Finish:
- Hot Dip Galvanised
- Hot Dip Galvanised and powder coated yellow with black bands.
Traffic-Line Vertical Pipe Protectors
These large Traffic-Line Vertical Pipe Protectors offer an effective way to keep pipes, ducts (e.g. cable ducts) etc. safe from collision damage.
- Grade steel strap designed in a semi-circular shape
- Suitable for dowelling by two floor and wall panels (150 mm x 50 mm x 5 mm)
- Surface galvanized and plastic coated
- Colour yellow with black stripes
PRODUCT INFORMATION
The TRAFFIC-LINE Pipe/Cable Guard provides protection for exposed down pipes against accidental damage from passing vehicles with wall and ground fi xing plates providing secure anchorage.Strong semi-circular construction affords a high degree of protection in factories, warehouses, distribution depots, public buildings, offi ce blocks etc.
Finish:
- Indoor and outdoor use: Hot Dip
- Galvanised and powder coated yellow with black bands.
- Specifi cations:
- Tube: 48mm Ø
- Wall thickness: 2mm
- Fixing plates: 150 x 50 x 10mm
- Internal dimensions: 250 x 275 (W x D)
