Building Protection System «

RUBBER WHEEL STOPPER (K- GUARD)

Dual function yellow coloured, UV resistant reflective cover strip
covers the fixing accessories giving smooth and attractive appearance.

Base width	Height	Length
138 mm	100 mm	As per customer requirement
150 mm	150 mm	As per customer requirement

Other sizes can also be manufactured base on orders.

Easy installation, No floor preparation required as the installation is done with mechanical anchors, Can be
installed after floor coating and traffic marking, Easy maintenance, Longer life.

SPEED–HUMPS/ SPEED GARDS

Are speed breakers designed for controlling the speed of vehicles.
Speed breakers are used in roads, Vehicle pathways in parking area of building, Service stations, Vehicle
testing centres etc.

Base width (mm)	Length (mm)	Height (mm)	Type
400	500	50	Chequered plate Design
400	500	65	Chequered plate Design
600	500	30	Chequered plate Design
400	250	68	Groove design
600	500	75	Groove design
300 mm with yellow strip		60	Extruded Max.Length 12 mtr
300 mm with full black		60	Extruded Max.Length 12 mtr
300 mm with full black		75	Extruded Max.Length 12 mtr
300 mm with full black		80	Extruded Max.Length 12 mtr

Easy installation, No floor preparation required as the installation is done with mechanical anchors, Can be
installed after floor coating and traffic marking, Easy maintenance, Longer life, Extruded design is provided
with three yellow coloured UV resistant cover strips on the top covering the fixing accessories.

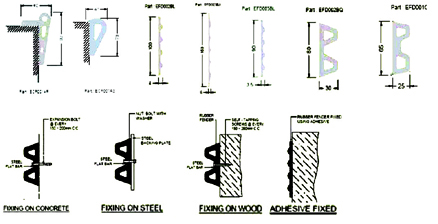

RUBBER CORNER GUARD (COLGARD)

COLGARDS are extruded profile, manufactured from high impact resistant rubber, designed to protect the
corners of the colums.COLGARDS are available with or without steel backing plates at various wing lengths.

CL 65 with ‘O’ ring and without ‘O’ ring.
CL75, CL 90, CL 100, CL 150 with Yellow strip and without Yellow strip.AD55, AD75, AD125
AD100 Yellow strip and without Yellow strip
(CL – with steel backing plates, AD- without steel backing plates.)
Other sizes can be supply based on orders.Easy installation, Easy maintenance, Longer life, Corner Guards can be supply on various colours.

RUBBER WALL GUARD ( E-GARD)

EGARDS are manufactured from high impact resistant rubber, and can be fixed horizontally or vertically on
to flat or curved surfaces.EGARDS are designed to protect round section columns and wall in the parking
area.

Available sizes
120 mm x 30 mm
200 mm x 25 mm
200 mm x 30 mm
200 mm x 25 mm with yellow strip.
200 mm x 25 mm with two yellow strip
200 mm x 50 mm
200 mm x 50 mm with yellow strip
200 mm x 50 mm with two yellow strip
Other sizes, colour can be supplied as per customer specification.

STEEL BOLLARDS

Steel Bollards are used to guard fagile areas or corner location on the roads, carparks and other industrial
segments.

Dia	Length	Wall thickness
60 mm	600 mm to 2000mm	4 mm
90 mm	600 mm to 2000mm	4 mm
100 mm	600 mm to 2000mm	4 mm
115 mm	600 mm to 2000mm	4 mm
125 mm	600 mm to 2000mm	4 mm
140 mm	600 mm to 2000mm	4 mm

DOCK BUMPERS

Dock Bumpers designed to protect the walls of loading /unloading bays, installed either vertically or horizontally
on the wall.

D BUMPERS

SQUARE BUMPERS

LAMINATED DOCK BUMPERS

LIGHT DUTY BUMPERS

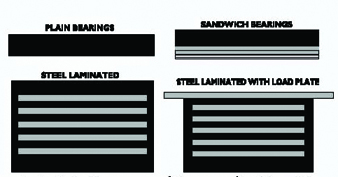

BEARING PADS

Transfer loads or accommodate relative movement between a superstructure and its
supporting sub-structure.

PLAIN ELASTOMERIC BEARING PADS

SANDWICH BEARING

STEEL LAMINATED ELASTOMERIC BEARING

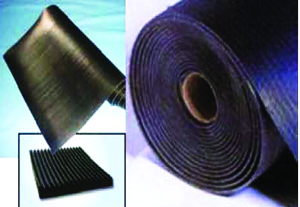

ELECTRICAL RESISTANT MATTING (EL MAT)

ELMATS are made of special quality rubber to resist shocks and are used in control rooms, Switch boards
panel basements, Electrical machinery rooms and other similar areas.
ELMATS can withstand up to 30000 Volts.
Size- 1.2 mtr wide and 10 mtr long rolls having project square grooves, Minimum base 6 mm thickness as per
BS standard specifications.

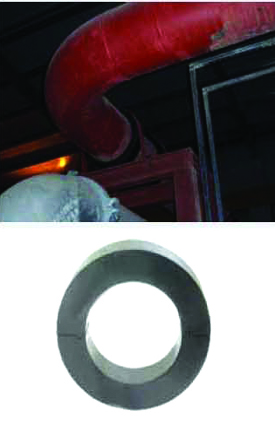

RUBBER PIPE SUPPORTS

Very high load bearing capacity, dimensionally
accurate as each piece is moulded. Excellent
resistance to distortion / vibration, Tongue and groove
design on the joints.ApplicationUsed at the supporting points of insulated pipes to revent crushing of insulation inherently superior to wood.
